Material: Tool steel
System: FiberMark 30W
Settings:
- Speed: 22%
- Power: 100%
- Frequency: 1%
- Focus: 3" standard, -0.010"
- Resolution: 1200DPI
|
|
Material: Polypropylene
System: FiberMark 50W
Settings:
- Speed: 60%
- Power: 80%
- Frequency: 100%
- Focus: 0, -.010", -.020"
- Resolution: 600DPI
|
|

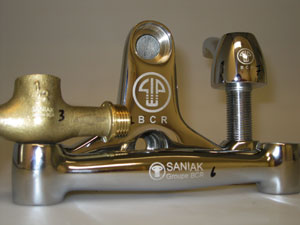

Material: Various plated washroom fixtures
System: FiberMark 30W
Settings:
- Speed: 70%
- Power: 40%
- Frequency: 80%
- Focus: 5", with different focal points
- Resolution: 600DPI
|
|
Material: 5"X3" stainless steel plate
System: FiberMark 50W
Settings:
- Speed: 100%
- Power: 21%
- Frequency: 100%
- Focus: 3" standard
- Resolution: 300DPI
|
|

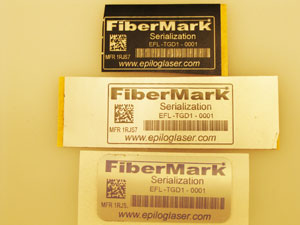

Material: Schreiner ProTech Color Laser Film
System: FiberMark 30W
Settings:
- Speed: 35%
- Power: 35% for silver, 23% for black
- Frequency: 90%
- Focus: 3" standard
- Resolution: 600DPI
|
|
Material: 1/8" thick white teflon sheets
System: Mini18-40W
Settings:
- Speed: 5%
- Power: 100%
- Frequency: 400
- Focus: 2" standard
- Resolution: 600DPI
|
|

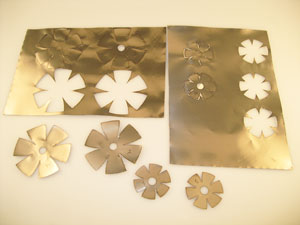

Material: .002" titanium sheets
System: FiberMark 30W
Settings:
- Speed: 8%
- Power: 50%
- Frequency:5%
- Focus: 3" standard
- Resolution: 600DPI
|
|
Material: 6061 Aluminum plate used for molding
System: FiberMark 50W
Settings:
- Speed: 18%
- Power: 100%
- Frequency:1%
- Focus: 3" standard
- Resolution: 600DPI
|
|
Material: 30% glass filled Peek
System: FiberMark 50W
Settings:
- Speed: 50%
- Power: 40%
- Frequency: 40%
- Focus: 3" standard
- Resolution: 600DPI
|
|
Material: Linoleum tiles
System: Zing24-60W
Settings:
- Speed: 100%
- Power: Varying from 25%-45%
- Frequency: NA
- Focus: 2" standard
- Resolution: 1000DPI
|
|
Material: Gun steel, unknown grade.
System: FiberMark 50W
Settings:
- Speed: 20%
- Power: 100%
- Frequency: 1%
- Focus: 3" standard, -.030"
- Resolution: 1200DPI
|
|
Material: Leather & beaver felt cowboy hat
System: EXT 120W
Settings:
- Speed: 30%
- Power: 10%
- Frequency: NA
- Focus: 4" standard lens w/ plunger & nozzle removed
- Resolution: 400DPI
|
|

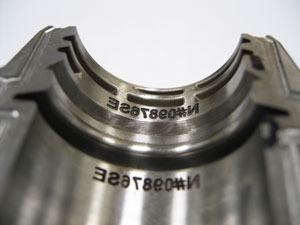

Material: Stainless steel die used for coin stamping.
System: FiberMark 50W
Settings:
- Speed: 8%
- Power: 100%
- Frequency: 1%
- Focus: standard 3" standard -.110" focus
- Resolution: 600DPI
|
|
Material: .003" 4047 Alumimun shim
System: FiberMark 50W
Settings:
- Speed: 6%
- Power: 100%
- Frequency: 1%
- Focus: standard 3" standard
- Resolution: 600DPI
|
|
Material: .024" Carbon fiber expoxy weave w/ 400 grams per square meter weight.
System: Zing24-60W & FiberMark 30W
Settings:
- Speed: see notes
- Power: see notes
- Frequency: see notes
- Focus: standard 2" for Zing, standard 3" for FiberMark
- Resolution: 600DPI
|
|

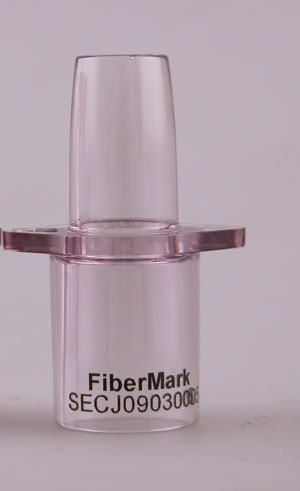

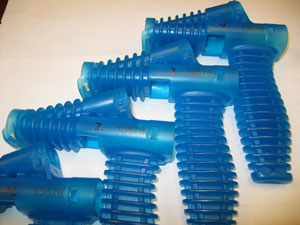

Material: Medical grade polysulphone
System: FiberMark 30W
Settings:
- Speed: 30%
- Power: 60%
- Frequency:45%
- Focus: 3" standard
- Resolution: 600DPI
Comments: FiberMark 3-jaw chuck
rotary used for processing. Cycle tiime of 35 seconds each. Particular
plastic offers high contrasting mark.
|
|

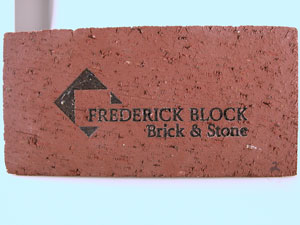

Material: Clay brick paver
System: Helix 75W
Settings:
- Speed: 17%
- Power: 100%
- Frequency:5000K
- Focus: 2" standard +1/8" further away in focus
- Resolution: 600DPI
|
|

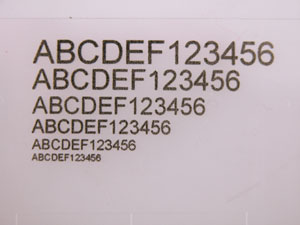

Material: Ferro's LMC 6044P glass/ceramic black compound applied on glass slides.
System: FiberMark 30W
Settings:
- Speed: 6%
- Power: 42%
- Frequency:80%
- Focus: 3" standard, +3 Fo
- Resolution: 600DPI
Comments: Font size of test marks vary from 14pt down to 6pt.
|
|
Material: Black santoprene rubber
System: FiberMark 30W
Settings:
- Speed: 30%
- Power: 20%
- Frequency:60%
- Focus: 3" standard
- Resolution: 600DPI
Comments: Mark is similar to delrin/acetal in contrast. Cycle time of 32 seconds.
|
|
Material: Black delrin/acetal
System: FiberMark 30W
Settings:
- Speed: 40%
- Power: 25%
- Frequency:15%
- Focus: 3" standard, -1 Fo
- Resolution: 600DPI
Comments: Mark is very contrasting but not as white as other FiberMarkable plastics. cycle time was 13 seconds.
|
|

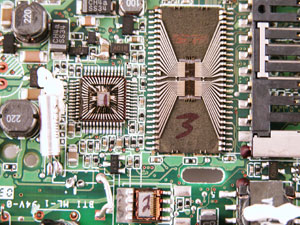

Material: PCB board
System: FiberMark 30W
Settings:
- Speed: 40%
- Power: Varying w/ multiple passes
- Frequency:60-80%
- Focus: 3" standard
- Resolution: 1200DPI
|
|

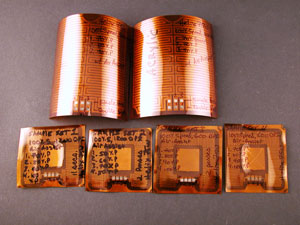

Material: FEP & Acrylic coated circuits
System: 75W Helix
Settings:
- Speed: 100% for both Acrylic & FEP
- Power: 80%
- Frequency:NA
- Focus: 2" standard
- Resolution: 600DPI
|
|

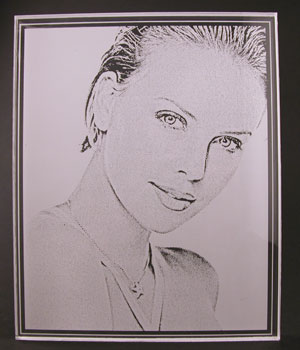

Material: 11mm cast acrylic
System: 45W Helix
Settings:
- Speed: 100%
- Power: 60%
- Frequency:NA
- Focus: 2" standard
- Resolution: 300DPI
Comments: Imaged at 300DPI, 8-bit
greyscale. Adjusted brightness, contrast and intensity. Processed and
mirrored thru Photograv/acrylic setting. Reversed engraved at 300DPI,
Stucki mode. Cycle time 8:16.
|
|

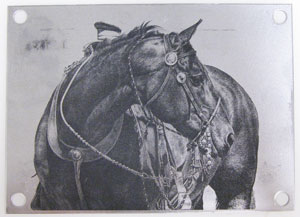

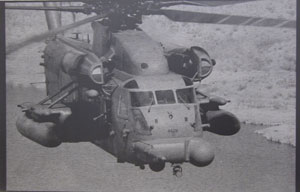

Material: Black anodized aluminum
System: FiberMark 30W
Settings:
- Speed: 40%
- Power: 30%
- Frequency:5
- Focus: 3" standard, +8 Fo
- Resolution: 200DPI
Comments: Imaged at 300DPI, 8-bit
greyscale. Adjusted brightness, contrast and intensity. Mirrored and
printed at 200DPI, Stucki mode. 8:37 cycle time.
|
|

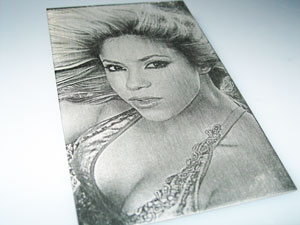

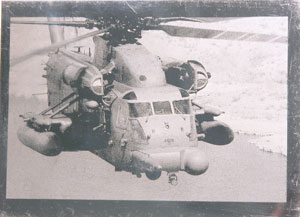

Material: 5.5"X4" high finish stainless steel.
System: FiberMark 30W
Settings:
- Speed: 70%
- Power: 39%
- Frequency: 100
- Focus: 3" standard, +8 Fo
- Resolution: 200DPI
Comments: Polished mark. Image set-up is same as above but different brightness, contrast and intensity. 2:07 cycle time.
|
|

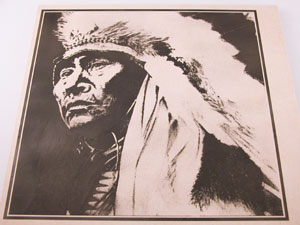

Material: 12X12 basic depot tile
System: FiberMark 30W
Settings:
- Speed: 20%
- Power: 80%
- Frequency: 60
- Focus: 3" standard, +8 Fo
- Resolution: 300DPI
|
|

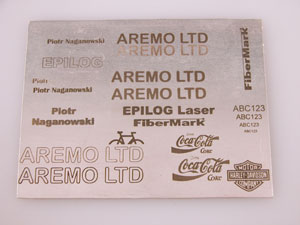

Material: Pure silver plate
System: FiberMark 20W
Settings:
- Speed:15%
- Power:100%
- Frequency: 1
- Focus: 3" standard, 0 Fo
- Resolution: 600DPI
Comments: Various marks done on
silver plate, most marks done at above settings. Adjusting speed &
focus may result in more contrast.
|
|
Material: Porcelain sample from Sloan Inc.
System: EXT-120W
Settings:
- Speed:Various from 7% to 30%, top to bottom
- Power:100%
- Frequency: NA
- Focus: 2" standard
- Resolution: 600DPI
Comments: Air-assist doesn't
appear to help with quality of etch. Overpowering it with less speed or
higher resolution doesn't offer a nice contrasting mark. Best marks are
the lighter ones.
|
|

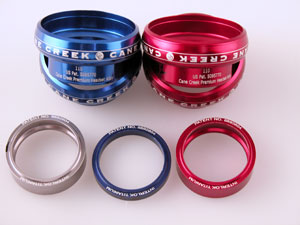

Material: Anodized aluminum bicycle head components
System: FiberMark 50W
Settings:
- Speed:40%
- Power:60%
- Frequency: 35
- Focus: 3" -.040"
- Resolution: 600DPI
Comments: New 3-jaw chuck rotary
used for top components. Mark covers entire circumfrence, image matches
and very little over travel. 5:51 total cycle time for larger component.
|
|
Material: Vector cut prospect supplied dxf file onto 20lb stock paper. Place 2D barcode on same.
System: Mini 24-45W
Settings:
- Speed:17% for vector, 100% for raster
- Power:4% for vector, 20% for raster
- Frequency: 240
- Focus: 1.5"
- Resolution: 600DPI
Comments: Cuts are smooth, very
little burning/charring. Raster engraved 2D barcode is readable using
our Hand Held Products code reader. Some of the holes measure .062".
|
|
Material: C02 laser mark heavy powdercoated aluminum, paint fill.
System: Helix 45W
Settings:
- Speed:15%
- Power:100%
- Frequency: NA
- Focus: 1.5"
- Resolution: 1200DPI
Comments: Part is a Cessna
steering wheel. Masked with transfer tape and fixtured where marking
area was flat. Auto-focus plunger and air-assist nozzle removed for
clearance. Color filled using white acrylic paint.
|
|
Material: FiberMark keylock barrel at approx. 30-40 degree angle.
System: FiberMark 20W
Settings:
- Speed:8%
- Power:100%
- Frequency: 5
- Focus: 5.5" -.110
- Resolution: 600DPI
Comments: Barrel was positioned as
flat as possible. 5.5" lens allowed for even engraving. Focus point was
from highest point up. cycle time approx. 40 seconds.
|
|

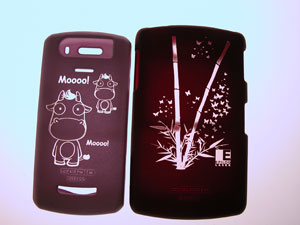

Material: C02 laser mark rubberized coated plastic phone casing.
System: Helix 45W
Settings:
- Speed:80%
- Power:55%
- Frequency: NA
- Focus: 2" standard
- Resolution: 600DPI
Comments: Seidio brand casing.
|
|

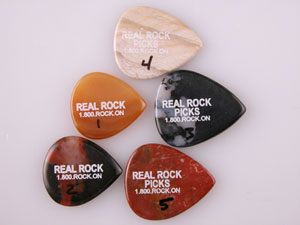

Material: C02 laser mark solid rock guitar picks.
System: Zing 35W laser
Settings:
- Speed:various 12-22%
- Power:70%
- Frequency: NA
- Focus: 2" standard
- Resolution: 500DPI
Comments: Center/center feature used. Depth approx. .010-.015".
|
|
Material: Photo imaging using TherMark metal marking spray on a 5.5"X4" Stainless steel plate
System: Helix 45W
Settings:
- Speed:30%
- Power:100%
- Frequency: NA
- Focus: 2" standard
- Resolution: 300DPI
|
|
Material: Plastic miniSD memory card.
System: FiberMark 30W
Settings:
- Speed:30%
- Power:16%
- Frequency: 80K
- Focus: 3" standard -6Fo
- Resolution: 600DPI
Comments: FiberMarking this
plastic provides decent contrasting mark, not as bright as other
plastics but legible with crisp, clean edges. 10 second cycle time.
|
|
Material: Stainless steel surgical instrument
System: FiberMark 30W
Settings:
- Speed:15%
- Power:100%
- Frequency: 20K
- Focus: 3" standard +9 Fo
- Resolution: 1200DPI
Comments: Annealed mark.
|
|

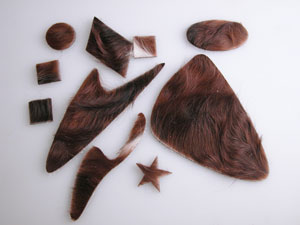

Material: Raw cowhide
System: EXT-120W
Settings:
- Speed:40%
- Power:18%
- Frequency: 500
- Focus: 2" cone lens
- Resolution: 600DPI
Comments: Cowhide's soft and
supple. Engraved from the back-side using 2" cone w/ AA. Approx.
thickness is 1/8". Minimal charring or burning occurs, even on the fur
hairs. Application is for custom designed rugs.
|
|
Material: Electrical control keypad panel
System: FiberMark 30W
Settings:
- Speed:40%
- Power:40% (for dark grey, 70%)
- Frequency: 80K
- Focus: 3" standard, -3 Fo
- Resolution: 600DPI
Comments: Plastic is injection
molded bayer 2807 Makrolon polycarb in various colors. All three samples
marked nicely. Cycle time is ~1 minute.
|
|

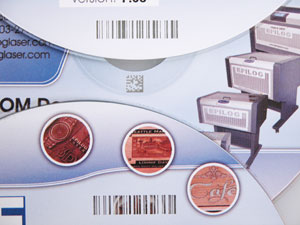

Material: CD-R used for our driver and CD demo. Ink printed.
System: Helix 45W
Settings:
- Speed:100%
- Power:50%
- Frequency: NA
- Focus: 2" standard
- Resolution: 600DPI
Comments: Barcodes are readable
using our Hand Held Products code reader. C02 marking on area containing
data will result in corrupting the data but not completely. Only in the
areas laser marked. Ideal marking area is within inner ring (2D
barcode) where no data is present or outer perimeter where data may
not be present.
|
|
Material: Laser Pro, Laser Film, sold thru Grafix Plastics
System: Helix 45W
Settings:
- Speed:10%
- Power:5%
- Frequency: 500
- Focus: 2" standard
- Resolution: 600DPI
Comments: For best results, place a
peice of standard print paper under the stencil film to prevent the
film from having smoked edges. Air-assist used at approx. 15-20PSI. For
best quality on intricate cuts, use vector speed of 5-20%. Stencil
thickness is .007" for blue and .010" for semi-transparent.
|
|
Material: Automotive spark plug
System: FiberMark 20W
Settings:
- Speed:30%
- Power:100%
- Frequency: 20K
- Focus:3" standard +3 Fo
- Resolution: 600DPI
Comments: Nickel plated 1215 mild
steel.Polished mark took 5 seconds. Application requirement; 8-digit
alpha-numeric ID, do not penatrate nickel plating.
|
|

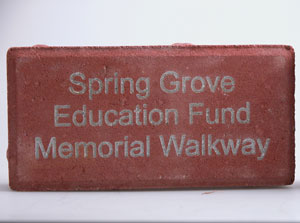

Material: Standard paver brick
System: Legend 36EXT 60W
Settings:
- Speed:5%
- Power:100%
- Frequency: NA
- Focus:2" standard
- Resolution: 600DPI
Comments: Air assist was used, depth approx. 1/32-1/16". Approx size was 8"X4".
|
|

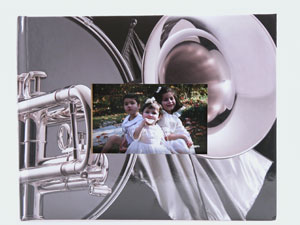

Material: 4-5mm thick mat board yearbook covers.
System: Legend 36EXT 120W
Settings:
- Speed:26%
- Power:50%
- Frequency: 500
- Focus:2" cone lens w/ air-assist
- Resolution: 600DPI
Comments: Book cover was open and
raised 1" to provide a clear path for the laser beam. Cone lens w/
air-assist works very well providing minimal burning/charring.
|
|

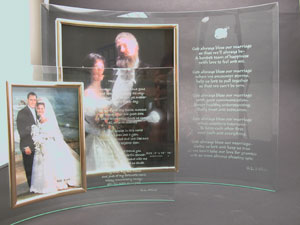

Material: Curved glass picture frames.
System: Helix 35Watt
Settings:
- Speed:35%
- Power:100%
- Frequency: NA
- Focus:2" standarad
- Resolution: 600DPI
Comments: Liquid dishwashing soap
was applied prior to engraving. Frames positioned where engraved area
was relatively flat. Focused in between high and low points.
Center/center was used.
|
|
Material: Brass & stainless
steel musical instrument mouth pieces. Additional samples done were same
metals coated with silver and titanium nitride.
System: EXT 120Watt
Settings:
- Speed:40%
- Power:60%
- Frequency: NA
- Focus:2" standarad
- Resolution: 600DPI
|
|

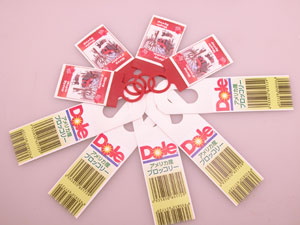

Material: White polystyrene
& red polypropylene rubber sheets with glued paper coupons attached.
Used for labeling products and produce.
System: EXT 120Watt
Settings:
- Speed:50%
- Power:14% for white and 25% for red. Red contains 2-layered paper.
- Frequency: 500 for white, 700 for red
- Focus:2" standarad
- Resolution: 600DPI
Comments: System used is overkill,
would work well with a 35W or 45Watt Mini/Helix. Both rubbers cut
great, leaving no signs of charring, burning or residue. Vacuum suction
helped as the materials supplied were in rolls. Rubber's very stretchy.
|
|

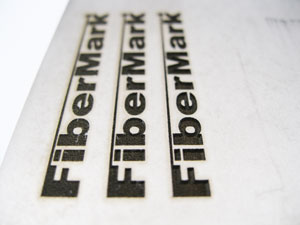

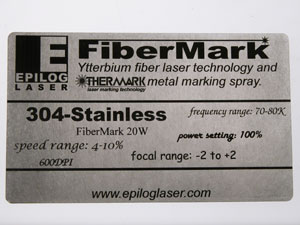

Material: 5X3 bare 304 stainless steel sheet used in the distributor sample board.
System: FiberMark 20Watt
Settings:
- Speed:8%
- Power:100%
- Frequency: 80K
- Focus:+1
- Resolution: 600DPI
Comments: TherMark applied
FiberMark sample. Range of settings for 304-stainless engraved onto
sample.Metals tested have very similar tolerances in settings.
|
|

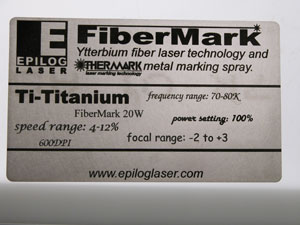

Material: 5X3 bare titanium sheet used in the distributor sample board.
System: FiberMark 20Watt
Settings:
- Speed:8%
- Power:100%
- Frequency: 80K
- Focus:+2
- Resolution: 600DPI
Comments: TherMark applied
FiberMark sample. Range of settings for titanium engraved onto
sample.Metals tested have very similar tolerances in settings.
|
|

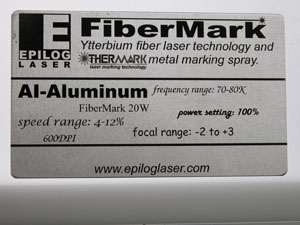

Material: 5X3 bare aluminum sheet used in the distributor sample board.
System: FiberMark 20Watt
Settings:
- Speed:8%
- Power:100%
- Frequency: 80K
- Focus:+3
- Resolution: 600DPI
Comments: TherMark applied
FiberMark sample. Range of settings for Aluminum engraved onto sample.
Metals tested have very similar tolerances in settings.
|
|
Material: Plastic USB mouse
System: FiberMark 20W
Settings:
- Speed:45%
- Power:80%
- Frequency: 40K
- Focus:0
- Resolution: 600DPI
Comments: Marking area was relatively flat. Focused in between high and low point. Cycle time: 21 seconds.
|
|

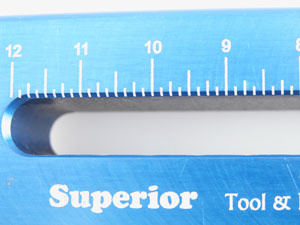

Material: Hard anodized aluminum
System: FiberMark 20W
Settings:
- Speed:30%
- Power:100%
- Frequency: 35K
- Focus:+2
- Resolution: 600
Comments: Ruler & logo both rastered. Combined cycle time 1:57 seconds.
|
|
Material: Keypad display. Buttons are injection molded Bayer’s Bayblend FR110 Polycarb/ABS
System: FiberMark 20W
Settings:
- Speed:60%
- Power:100%
- Frequency: 35K
- Focus:0
- Resolution: 600
Comments: Cycle time 1:29 seconds.
|
|
|

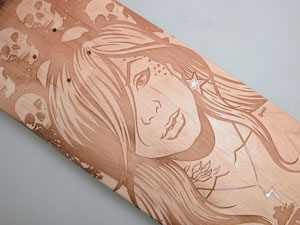

Material: formed plywood skateboard deck
System: Legend 36EXT 120W
Settings:
- Speed:100%
- Power:80%
- Frequency: NA
- Focus:2" standard
- Resolution: 600
Comments: Star, lightening bolt &
necklace were inlayed using 1/16" pink abalone. Vector cutting
settings: 30% speed, 80% power, 500Fr.
|
|
|

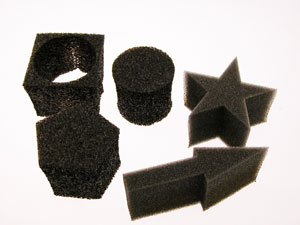

Material: 2" thick electronic packaging foam
System: Legend 36EXT 120W
Settings:
- Speed:23%
- Power:100%
- Frequency: 1K
- Focus: 4" cone lens
- Resolution: 600
Comments: Angle of cut is good considering the foam is 2" thick. Slight discoloration occurs towards bottom of foam.
|
|
|

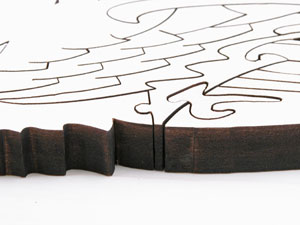

Material: 3/4" Poplar wood plank
System: Legend 36EXT 120W
Settings:
- Speed:5%
- Power:100%
- Frequency:700
- Focus: 4" cone lens
- Resolution: 600
Comments: Application is for wood puzzles. Air assist was used. Freq. adjustment from 500-1K doesn't appear to help with the edge burn.
|
|
|
Material: Machined aluminum
System: FiberMark 20W
Settings:
- Speed:10%
- Power:100%
- Frequency: 30K
- Focus: 0
- Resolution: 600
Comments: Machined aluminum marks best in focus.
|
|
|

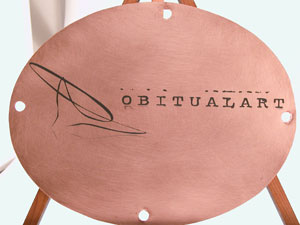

Material: 11X8 copper sheet
System: FiberMark 20W
Settings:
- Speed:7%
- Power:100%
- Frequency: 25K
- Focus: +2
- Resolution: 600
Comments: Mark is a dark red/brownish color. Unable to get black or dark grey mark.
|
|
|

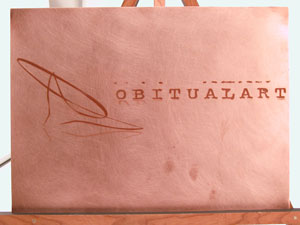

Material: 11X8.5 copper sheet
System: Helix 35Watt
Settings:
- Speed:7%
- Power:100%
- Frequency:NA
- Focus: 2" standard
- Resolution: 600
Comments: TherMark was used, washed copper prior to applying metal marking spray.
|
|
|
Material: RADEL (Polyphenylsulfone). Grey injection molded plastic
|
|
|
